Driver Air Bag Module: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover and disconnect the battery ground cable. Refer to Specifications information.
  2. Make the SRS system safe. Refer to Supplemental Restraint System (SRS) Health and Safety Precautions .

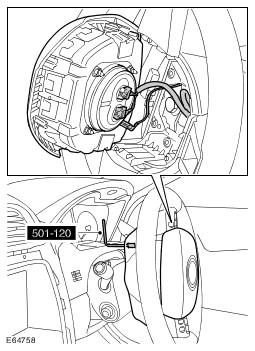

  3. Using the special tool remove the driver air bag module.
    • Rotate the steering wheel for access to slots.
    • Carefully release the 2 clips.
    • Disconnect the 3 electrical connectors.
      GJ0009492
