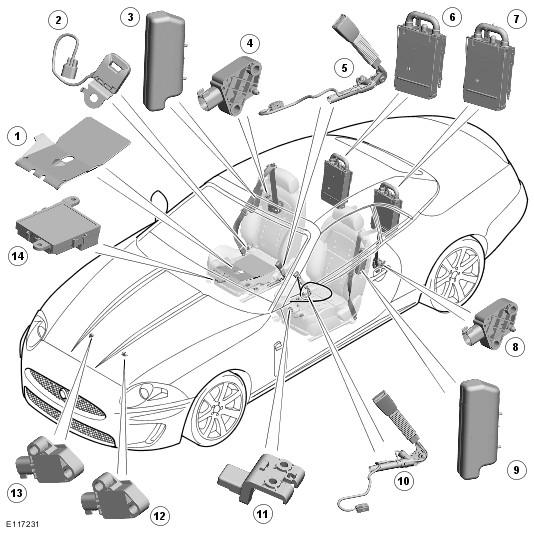

Component Location (Convertible) - Sheet 3 Of 3
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Left-hand drive (LHD) installation shown, right-hand drive (RHD) installation similar.
| Item Number | Description |
|---|---|
| 1 | Occupancy sensor |
| 2 | Safety belt tension sensor |
| 3 | RH side air bag |
| 4 | Side impact sensor |
| 5 | RH safety belt pretensioner |
| 6 | Roll over protection hoop |
| 7 | Roll over protection hoop |
| 8 | Side impact sensor |
| 9 | LH side air bag |
| 10 | LH safety belt pretensioner |
| 11 | Seat position sensor |
| 12 | Front impact sensor |
| 13 | Front impact sensor |
| 14 | Occupancy sensor module |
