Fender Splash Shield: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  2. Raise and support the vehicle.
  3. Remove the LH front wheel and tire. Refer to Wheel and Tire information.

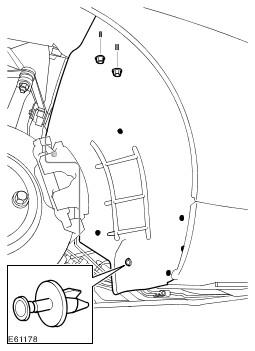

  4. Remove the fender splash shield, rear section.
    • Remove the 6 Torx bolts.
    • Remove the clip.
    • Remove the 2 nuts.
      GJ0008897
  5. Remove the fender splash shield, front section.
    • Remove the 13 Torx bolts.
      GJ0008898
