Exhaust System: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

  1. Raise and support the vehicle.

    2. Vehicles with supercharger

    CAUTION: Take extra care when handling the component.
  2. See figure
    GJ0025331

    3. All vehicles

  3. Torque: 25 Nm
    GJ0025332
  4. Torque: 25 Nm
    GJ0025333
  5. See figure
    GJ0025334
  6. Torque: 50 Nm
    GJ0025335
    7. NOTE: This step requires the aid of another technician.
  7. See figure
    GJ0025336
    8. NOTE: This step requires the aid of another technician.
  8. See figure

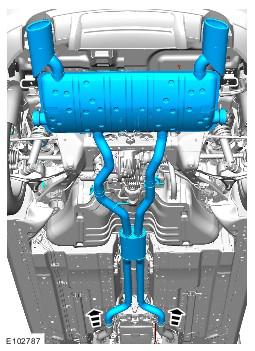

    GJ0025337
    9. NOTE: Do not disassemble further if the component is removed for access only.
  9. See figure
    GJ0025338
