Rear Stabilizer Bar: Installation

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. With assistance, install the rear stabilizer bar.
    GJ0009276

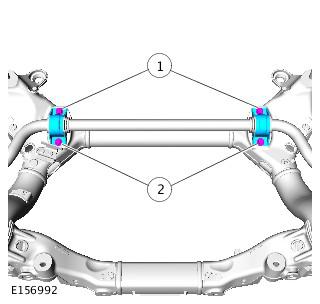

  2. During installation tighten the bolts in the following sequence.
    • Bolts 1: 55 Nm.
    • Bolts 2: 55 Nm.
    • Bolts 1: 55 Nm.
      G00559088
    3. NOTE: Use an additional wrench to prevent the component from rotating.
  3. Install the stabilizer bar links.
    • Install the bump stops.
    • Tighten to 48 Nm.
      GJ0009274
  4. Connect the electronic parking brake actuator electrical connector.
    • Secure the electrical connector.
      GJ0009272
  5. Install the height sensor link.
    GJ0009273
  6. Connect the LH rear ABS sensor.
    • Connect the electrical connector.
    • Carefully secure the clips.
    • Repeat the above procedure for the other side.
      GJ0009271
  7. Install the rear subframe. Refer to REAR SUBFRAME - 5.0L information.
