Rear Safety Belt Retractor - Vehicles With: Convertible Top: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Support the convertible top lid.

Open the convertible top to the position shown.
- Depress the switch.
Remove the rear seat backrest. Refer to Rear Seat Backrest information.
Release the rear seat backrest trim panel.
- Remove the 2 clips.
- Remove the 2 bolts.
- Position the rear seat backrest trim panel aside.
Remove the rear safety belt trim panel.
- Release the 2 clips.
- Remove the 2 nuts.

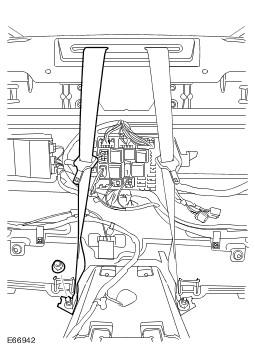

Release the safety belt.
- Remove and discard the safety belt lower anchor nut.
Remove the safety belt assembly.
- Remove and discard the Torx bolt.
- Release the safety belt.
