Four Point Harness Mounting Frame XK-RS Gt (2014, 2015): Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
NOTE: Some components shown removed for clarity.
  1. Refer to FRONT SEAT - Removal and Installation.
    2. CAUTION: Care must be taken not to damage surrounding components.
    NOTE: Note the orientation of the bolts.

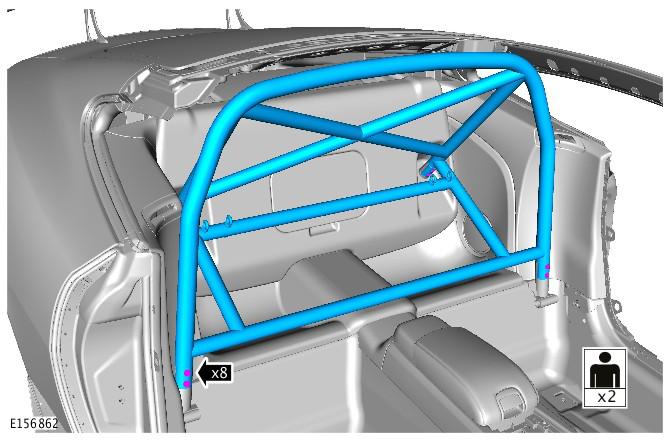

  2. Frame
    G00553505

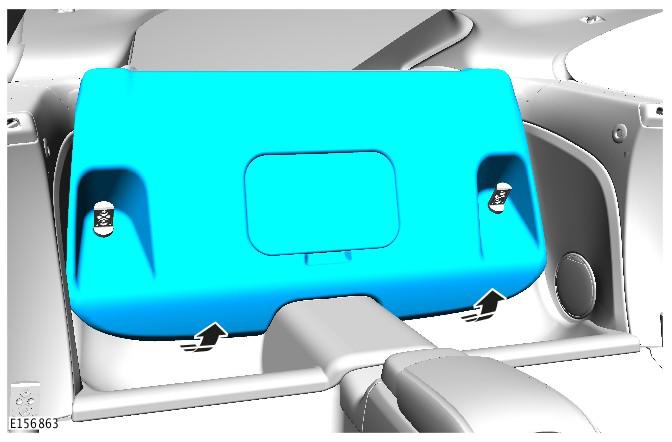

  3. G00553506

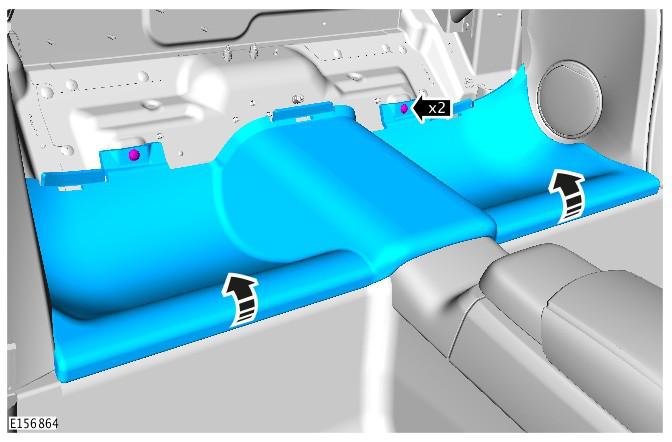

  4. G00553507
    5. NOTE: Repeat the procedure for the other side.
  5. Refer to FRONT SAFETY BELT RETRACTOR , Removal and Installation).
    6. NOTE: Repeat the procedure for the other side.

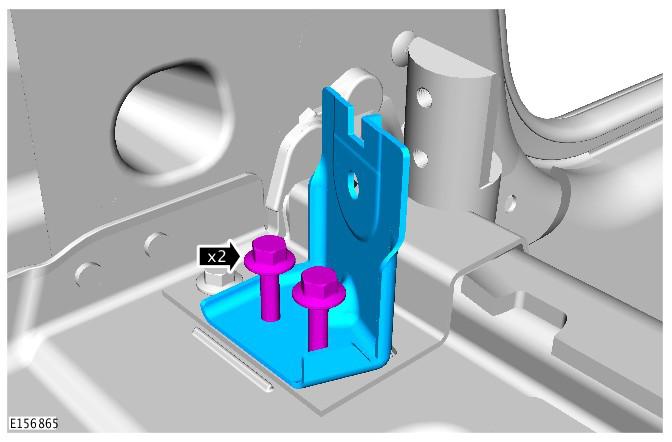

  6. G00553508
    7. NOTE: Repeat the procedure for the other side.

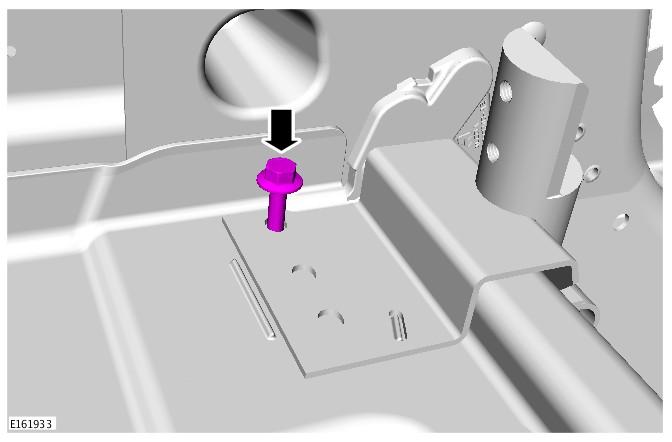

  7. G00553509
    8. NOTE: Repeat the procedure for the other side.
    NOTE: New spacers may be required for installation.

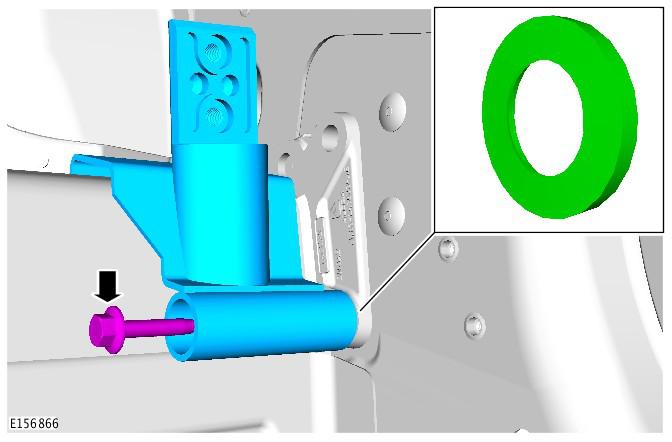

  8. G00553510
    9. NOTE: Repeat the procedure for the other side.
    NOTE: New spacers may be required for installation.

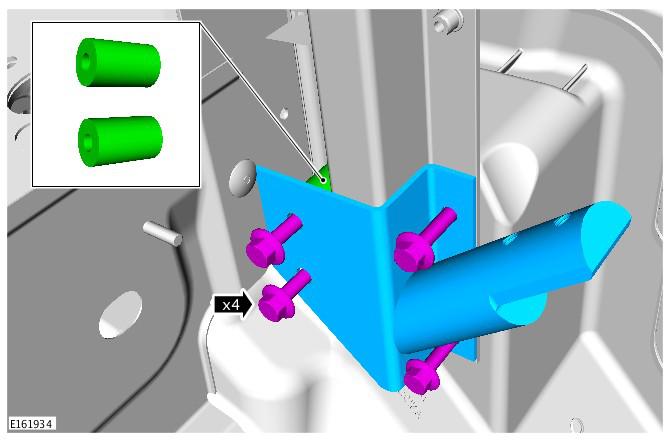

  9. G00559011
