Four Point Harness Mounting Frame XK-RS Gt (2014, 2015): Installation

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Repeat the procedure for the other side.
  1. Torque: 25 Nm
    G00553510
    2. NOTE: Repeat the procedure for the other side.
  2. Torque: 25 Nm
    G00553509
    3. NOTE: Repeat the procedure for the other side.
  3. Torque: 25 Nm
    G00559011
    4. CAUTION: Care must be taken not to damage surrounding components.
  4. Install the four point harness mounting frame making sure it is central in the vehicle. Install new spacers if necessary.

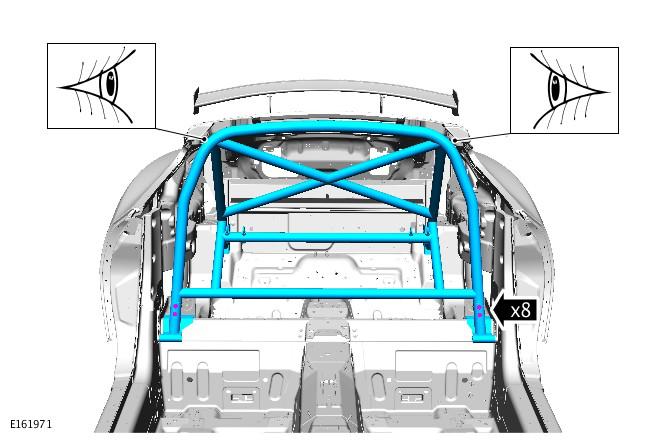

    G00559012
  5. Remove the four point harness mounting frame.
    6. NOTE: Repeat the procedure for the other side.
  6. Torque: 25 Nm
    G00553508
    7. NOTE: Repeat the procedure for the other side.
  7. Refer to FRONT SEAT - Removal and Installation.

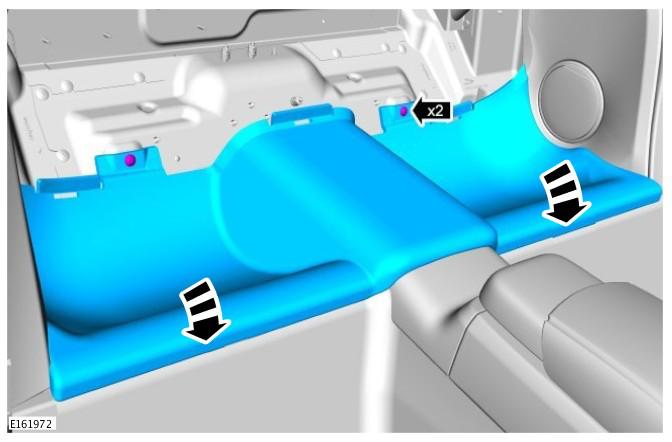

  8. G00559013

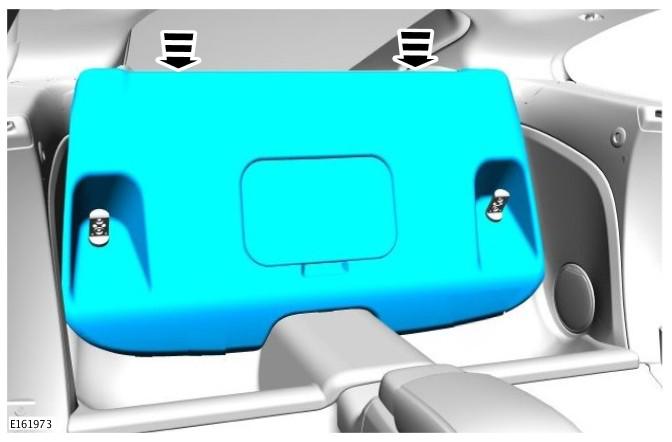

  9. G00559014
    10. CAUTION: Care must be taken not to damage surrounding components.
    NOTE: Install the bolts in the noted orientation.
  10. Torque: 25 Nm
    G00553505
