Differential Front Bushing: Installation

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

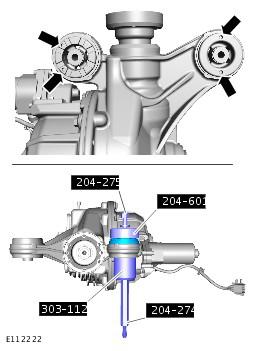

    NOTE: Make sure the new bushes are installed in the correct orientation.
  1. Bush install and removal tool (204-275)

    Bush install tool (204-601)

    Crankshaft Seal Installer (303-1121)

    Bush install and removal tool (204-274)

    GJ0022995
  2. Refer to Differential Case - 5.0L/3.0L Diesel . .
