Differential Case: Removal
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Raise and support the vehicle.
- Refer to Rear Halfshaft - 5.0L NA V8 - AJ133/5.0L SC V8 - AJ133 information.
- Refer to Exhaust System information.
- Torque: 7 Nm
- Torque: 10 Nm
- See figure
- Torque: 75 Nm

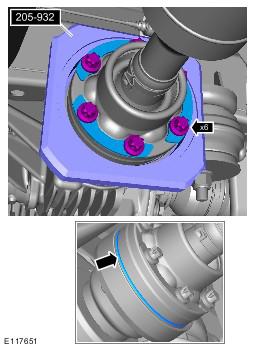

- Remover, Driveshaft (205-932)
- See figure
- Support the rear differential casing.
- Torque:
M14 190 Nm
M12 90 Nm
All vehicles
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
WARNING:
Make sure the axle assembly is supported.
CAUTION:
To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.
NOTE:
Make sure that the special tool is correctly installed to the recess on the driveshaft.
CAUTION:
To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.
NOTE:
Using a suitable hammer and drift, make sure that you only hit the corner edges of the special tool to remove the driveshaft.
Vehicles with supercharger
All vehicles
