Differential Draining And Filling: Check

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to Specifications
    2. WARNING: Make sure to support the vehicle with axle stands.
  2. Raise and support the vehicle.
    • Clean the area around the lubricant filler plug.
    • Position container to collect fluid loss.
      G00529802

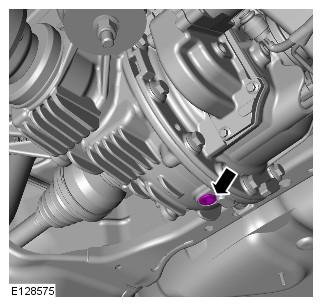

    • Clean the area around the drain plug.
    • Remove the fluid drain plug.
    • Drain the differential lubricant.
      G00531510
