Differential Draining And Filling: Adjustment

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

- Clean the drain plug.
- Torque: 27 Nm

CAUTION: Do not fill the differential with lubricant up to the filler plug. The filler plug is only used to fill the differential with lubricant, and not to act as a level indicator.

CAUTION: Make sure the correct specification and quanity of oil is used.

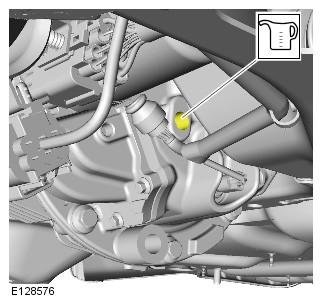

- Fill the differential with the correct amount of lubricant.
- Clean the filler plug.
- Torque: 27 Nm
