Component Location

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

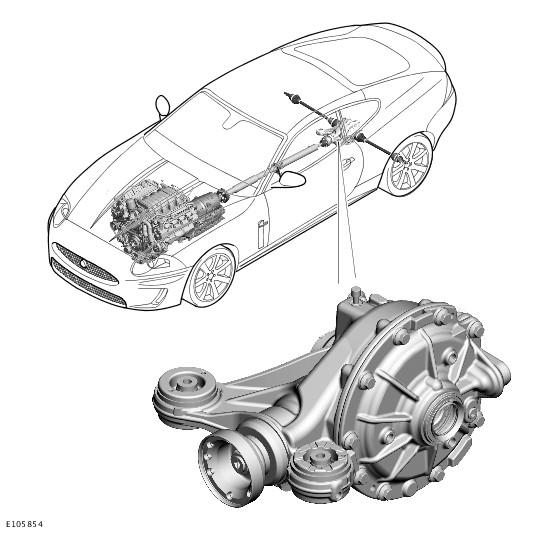

Open Differential

GJ0025660Courtesy of JAGUAR CARS, INC.

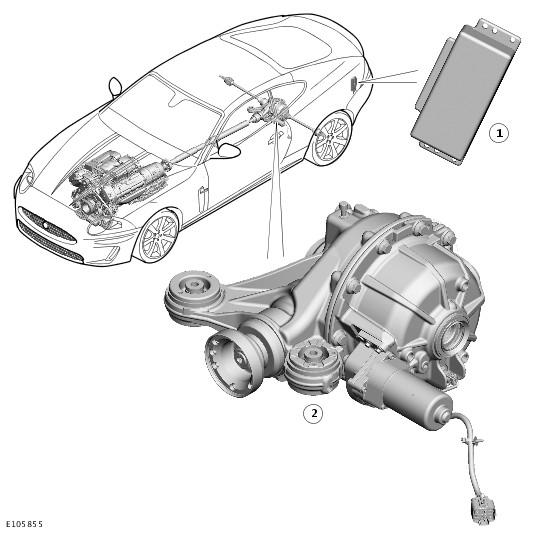

Electronic Differential

GJ0025661Courtesy of JAGUAR CARS, INC.
Item Number Description
1 DLM (differential locking module)
2 Electronic differential
