Front Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to Battery Disconnect and Connect information.
  2. Raise and support the vehicle.
  3. Refer to Wheel and Tire information.

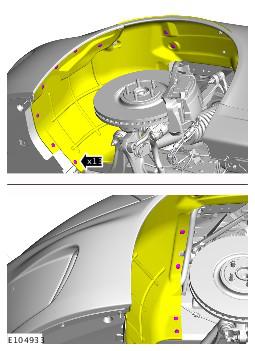

    4. NOTE: Left-hand shown, right-hand similar.
  4. Torque: 6 Nm
    GJ0025442
    5. NOTE: Left-hand shown, right-hand similar.
  5. See figure
    GJ0025443

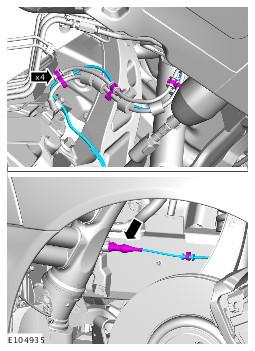

    6. NOTE: Left-hand shown, right-hand similar.
    • Carefully release the 4 clips.
    • Disconnect the wheel speed sensor electrical connector.
      GJ0025444
