Component Location - Sheet 2 Of 3

WARNING: This page is about a different car, the 2011 Jaguar XK and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

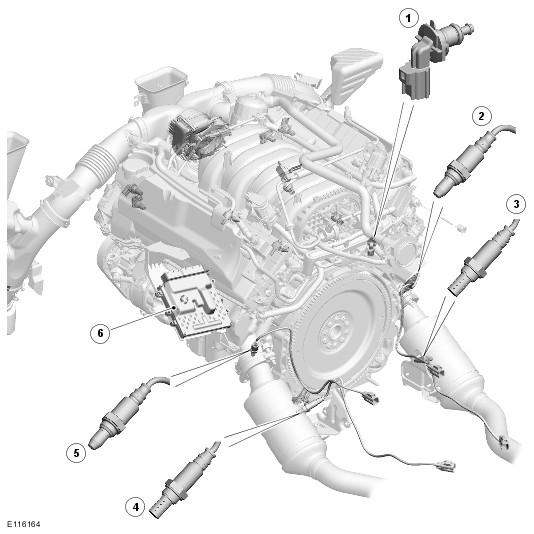

GJ0025544Courtesy of JAGUAR CARS, INC.
Item Number Description
1 ECT sensor (ECT 1)
2 Upstream HO2S (heated oxygen sensor)
3 Downstream HO2S
4 Downstream HO2S
5 Upstream HO2S
6 ECM (engine control module)
