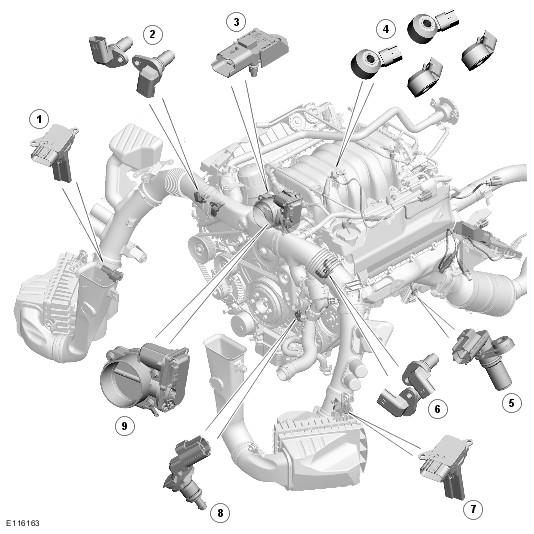

Component Location - Sheet 1 Of 3
WARNING: This page is about a different car, the 2011 Jaguar XK and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
MAFT (mass air flow and temperature) sensor |
| 2 |
CMP (camshaft position) sensors |
| 3 |
MAP (manifold absolute pressure) sensor |
| 4 |
Knock sensors |
| 5 |
CKP (crankshaft position) sensor |
| 6 |
CMP sensors |
| 7 |
MAFT sensor |
| 8 |
ECT (engine coolant temperature) sensor (ECT 2) |
| 9 |
Electronic throttle |
