Front Seat: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the front seat.
    • Position the front seat fully forwards.
    • Remove and discard the 4 rear bolts.
      GJ0025750
  2. Position the front seat fully rearwards.
  3. Remove the cover and disconnect the battery ground cable. Refer to BATTERY DISCONNECT AND CONNECT information.

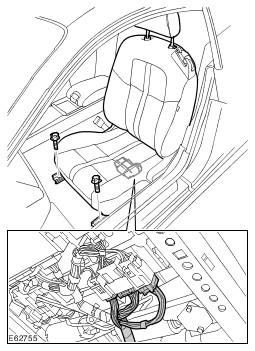

  4. With assistance, remove the front seat.
    • Remove and discard the front 2 Torx bolts.
    • Disconnect the 3 electrical connectors.
      GJ0009200
