Front Seat Recliner Motor: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover and disconnect the battery ground cable. Refer to SPECIFICATIONS information.
  2. Make the SRS system safe. Refer to SUPPLEMENTAL RESTRAINT SYSTEM information.
  3. Release the front seat cushion outer trim panel.
    • Remove the 2 Torx screws.
  4. Remove the front seat cushion outer trim panel.
    • Release the 2 clips.
    • Disconnect the electrical connector.
      GJ0009211

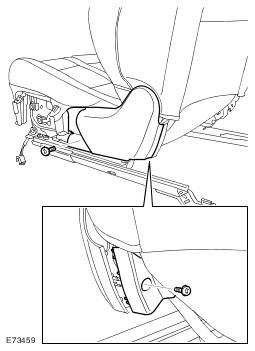

  5. Remove the front seat hinge cover.
    • Remove the 2 Torx screws.
    • Remove the hinge cover retainer.
      GJ0009212
  6. Remove the front seat backrest cover. See Front Seat Backrest Cover .

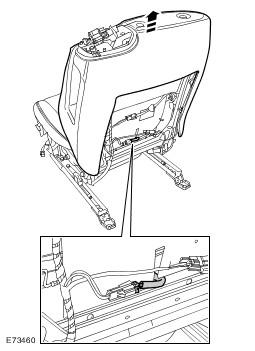

  7. Remove the front seat backrest pad.
    • Disconnect the electrical connector.
      GJ0009216
  8. Release the front seat lumbar assembly.
    • Release the 3 electrical connectors.
    • Remove the clip.
    • Disconnect the electrical connector.
      GJ0009215
  9. Remove the front seat lumbar assembly.
  10. Release the front seat recliner motor.
    • Remove the front seat backrest shaft clip.
    • Remove the front seat backrest shaft.
      GJ0009217
  11. Remove the front seat recliner motor.
    • Disconnect the electrical connector.
    • Drill out the rivet.
      GJ0009218
