Front Seat Backrest Heater Mat: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover and disconnect the battery ground cable. Refer to SPECIFICATIONS information.
  2. Make the SRS system safe. Refer to SUPPLEMENTAL RESTRAINT SYSTEM information.
  3. Remove the front seat. See Front Seat . .
  4. Release the front seat backrest cover lower tension straps.
    • Release from the seat frame.
      GJ0009205
  5. Release the 9 front seat backrest cover rear panel retaining clips.
    • Release from the backrest cover.
    • Release from the seat frame.
      GJ0009206
  6. Release the 5 front seat backrest cover lower retaining clips.
    • Release from the seat frame.
  7. Release the front seat backrest cover central tension straps.
    • Release from the seat frame.
      GJ0009207

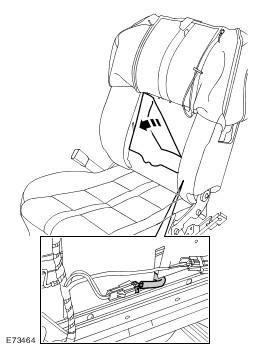

  8. Remove the front seat backrest heater mat.
    • Disconnect the electrical connector.
      GJ0010439
