Front Seat Backrest Cover: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make the SRS system safe. Refer to SUPPLEMENTAL RESTRAINT SYSTEM information.
  2. Remove the front seat. See Front Seat . .
  3. Remove the front seat head restraint.
    • Depress the 2 clips.
      GJ0009201

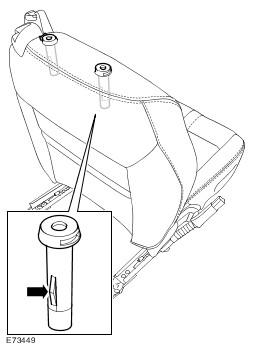

  4. Remove the front seat head restraint guide tubes.
    • Release from the seat frame.
      GJ0009202
  5. Remove the front seat backrest tilt handle.
    • Remove the screw.
      GJ0009203
  6. Remove the front seat backrest tilt handle trim panel.
    • Remove the 2 Torx screws.
      GJ0009204
  7. Release the front seat backrest cover lower tension straps.
    • Release from the seat frame.
      GJ0009205
  8. Release the 9 front seat backrest cover rear panel retaining clips.
    • Release from the backrest cover.
    • Release from the seat frame.
      GJ0009206
  9. Release the 5 front seat backrest cover lower retaining clips.
    • Release from the seat frame.
  10. Release the front seat backrest cover central tension straps.
    • Release from the seat frame.
      GJ0009207

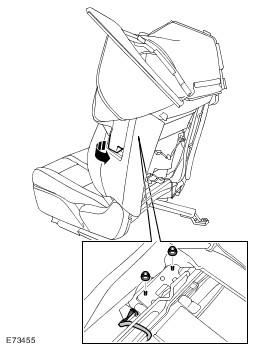

  11. Remove the side air bag module.
    • Remove and discard the 2 nuts.
    • Disconnect the electrical connector.
    • Release the backrest cover.
      GJ0009208
  12. Release the front seat backrest cover upper tension straps.
    • Release from the seat frame.
    • Withdraw from the backrest pad.
      GJ0009209
  13. Remove the front seat backrest cover.
    • Remove the 16 hog rings.
      GJ0009210


NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to BATTERY DISCONNECT AND CONNECT information.
  2. See Front Seat . .
  3. See figure
    GJ0025597
  4. See figure
    GJ0025598
  5. Torque: 3 Nm
    GJ0025599
  6. Torque: 5 Nm
    GJ0025600
    7. WARNING: The procedure must be carried out on both sides of the seat.
  7. See figure
    GJ0025601
  8. Torque: 3 Nm
    GJ0025602
  9. Torque: 5 Nm
    GJ0025603
  10. See figure
    GJ0025604

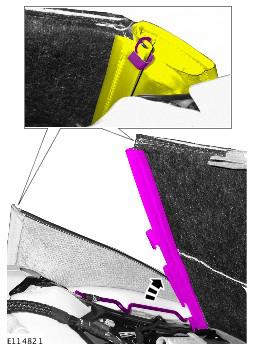

    11. WARNING: The procedure must be carried out on both sides of the seat.
  11. See figure
    GJ0025605
  12. See figure
    GJ0025606
  13. See figure
    GJ0025607

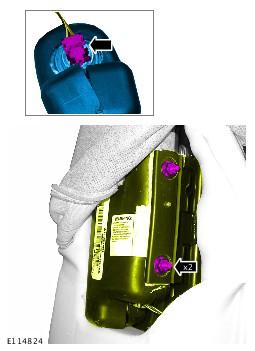

    14. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplementary restraints system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait for one minute. Failure to follow this instruction may result in personal injury.
    CAUTION: Make sure the front seat air bag sleeve and front seat backrest cover outer tension straps, are secure and correctly installed to the front seat frame to allow the air bag to deploy correctly. Failure to follow this instruction may result in damage to the vehicle.
  14. Torque: 9 Nm
    GJ0025608
  15. See figure
    GJ0025609
  16. See figure
    GJ0025610
  17. See figure
    GJ0025611
