Power Distribution Box
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

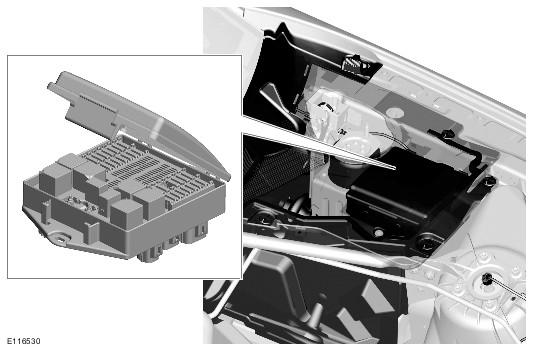

The power distribution box is located in the left-hand (LH) rear of the engine compartment, beneath a closing panel. The power distribution box is supplied electrical power from the battery junction box (BJB), via the central junction box (CJB). For more information on the circuits and systems served by the power distribution box, refer to the Electrical Guide.
