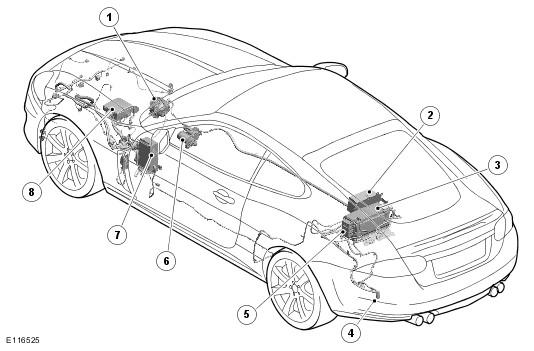

Component Location
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Generator |
| 2 |
AJB (auxiliary junction box) |
| 3 |
Battery |
| 4 |
Remote jump start terminal |
| 5 |
BJB (battery junction box) |
| 6 |
Starter motor |
| 7 |
CJB (central junction box) |
| 8 |
Power distribution box |
