Battery And Cables: Battery: Notes
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

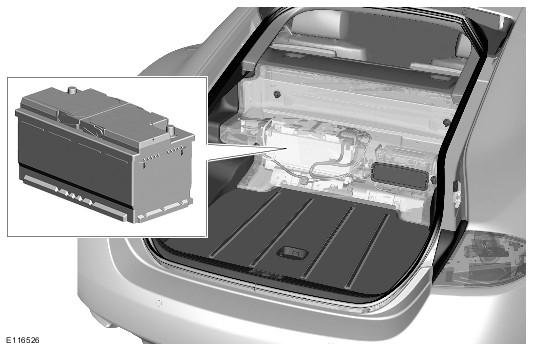

The battery is located behind a cover at the front of the luggage compartment. The cover is held in place by four retainers. The battery sits in a tray and is secured with a clamp plate and two nuts.
The positive and negative battery cables are fitted with service loops. The service loops add extra length to the cables and allow the battery to be slid rearward in the luggage compartment without disconnection.
