Battery Junction Box
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

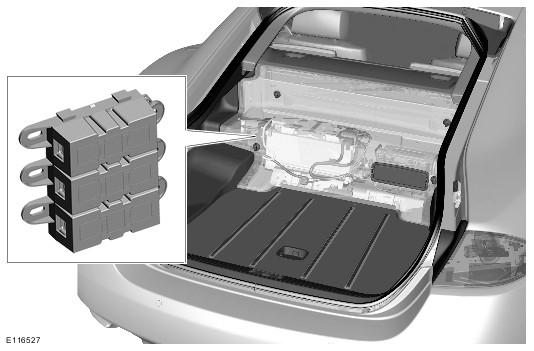

Mounted on the left-hand (LH) side of the battery is the battery junction box (BJB). The battery junction box (BJB) contains three megafuses delivering battery power to: the starter motor (400 A); the auxiliary junction box (AJB) (175 A) and the central junction box (CJB) (175 A). For more information, refer to the Electrical Guide.
