Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect
  2. Refer to: Floor Console Finish Panel

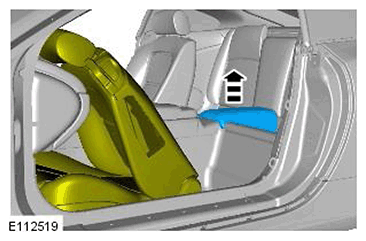

  3. G11541901

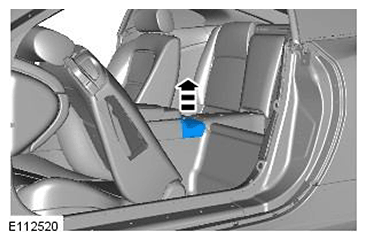

  4. G11541902

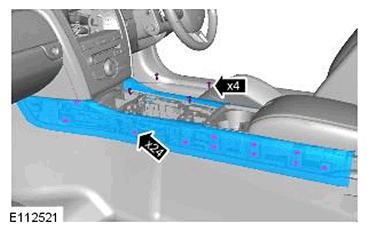

  5. G11541903

    Torque Specification: 6 Nm

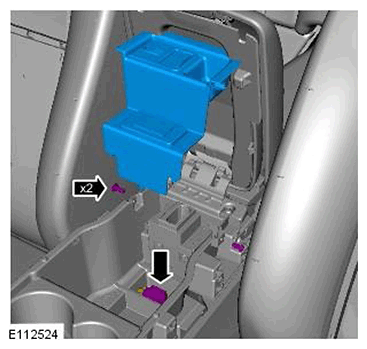

  6. G11541904

    Torque Specification: 2 Nm

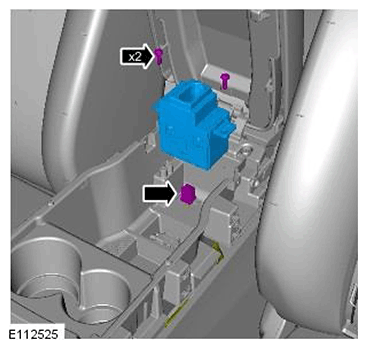

  7. G11541905

    Torque Specification: 2 Nm
