Removal And Installation: Installation

    CAUTION: Make sure that the mating faces are clean and free of foreign material.
  1. G11285242
    • Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.
    2. CAUTION: Make sure that the mating faces are clean and free of foreign material.
  2. G11285243
    • Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.
    3. NOTE: Tighten the bolts in the indicated sequence.
    Fig 1: Upper Timing Cover Bolts Tightening Sequence
    GJ0012157Courtesy of OF JAGUAR
    Fig 2: Upper Timing Cover Bolts Tightening Sequence
    GJ0012157Courtesy of OF JAGUAR

  3. Torque Specification: 12 Nm

    4. NOTE: Tighten the bolts in the indicated sequence.

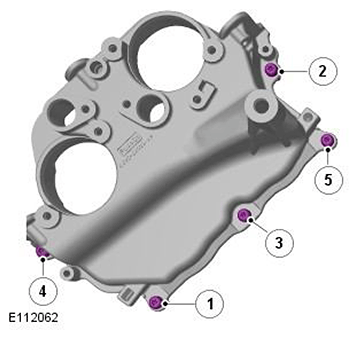

    Fig 3: Upper Timing Cover Bolts Tightening Sequence
    G11540843Courtesy of OF JAGUAR

  4. Torque Specification: 12 Nm

  5. G11285177

    Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.

    6. CAUTION: Make sure that the mating faces are clean and free of foreign material.
  6. G11285178

    Install the bolts, but do not tighten fully at this stage.

    Special Tool(s):  303-1433

    7. NOTE: Tighten the bolts in the indicated sequence.
    Fig 4: Lower Timing Cover Bolts Tightening Sequence
    G11285180Courtesy of OF JAGUAR

  7. Torque Specifications:

    M6 12 Nm

    M8 20 Nm

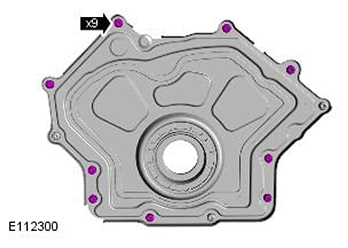

  8. G11540847

    Torque Specification: 12 Nm

  9. G11285240

    Torque Specification: 12 Nm

  10. G11285239

    Torque Specification: 12 Nm

  11. G11285356

    Torque Specification: 40 Nm

  12. NOTE: Install the bolt finger tight before final tightening.
    G11285355

    Torque Specification: 40 Nm

  13. Refer to: Crankshaft Pulley
  14. Refer to: Valve Cover RH
  15. Refer to: Valve Cover LH
  16. Refer to: Thermostat Housing - V8 5.0L Petrol
  17. Refer to: Accessory Drive Belt - V8 5.0L Petrol
  18. Refer to: Battery Disconnect and Connect
