Removal And Installation: Removal

  1. Refer to: Battery Disconnect and Connect

  2. Raise and support the vehicle.
  3. Refer to: Catalytic Converter RH
  4. G11299589

    Torque Specification: 12 Nm

  5. G11293775

    Torque Specification: 48 Nm

    6. CAUTION: Discard the bolt.
  6. G11512231

    Torque Specification: 35 Nm

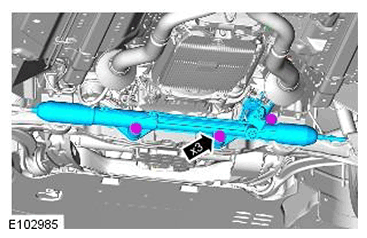

  7. G11540691

    Torque Specification: 100 Nm

  9. CAUTION: Discard the bolts.
    NOTE:
    • Discard the gasket.
    • Make sure that the position of the spacers is noted before removal of the manifold.
  10. G11285058
    11. NOTE: Do not disassemble further if the component is removed for access only.
  11. G11069547
