Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. Refer to: Battery Disconnect and Connect
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  2. Raise and support the vehicle.

  3. Refer to: Air Deflector - 5.0L

    All vehicles

    4. CAUTION: Support the engine on a jack. The angle may need to be adjusted during this procedure.

  4. Support the engine with the lifting equipment.

    Right-hand drive vehicles

  5. G11508005
    6. NOTE: Note the fitted position.

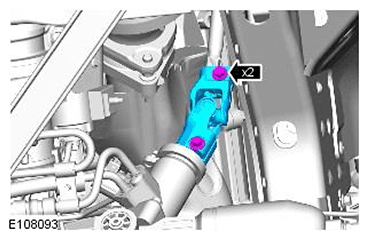

  6. G11540648

    Torque Specification: 35 Nm

  7. G11508007

    Torque Specification: 100 Nm

    All vehicles

  8. G11508008

    Torque Specification: 10 Nm

  9. G11508009

    Torque Specification: 63 Nm

  10. Torque Specification: 48 Nm
    G11508010
    11. NOTE: Do not disassemble further if the component is removed for access only.
  11. G11285409

    Torque Specification: 48 Nm
