Removal And Installation: Installation

    CAUTION: An acceptable flatness of the cylinder head is 0.1mm.
    NOTE: For cylinder head with distortion above the maximum allowance, the cylinder head material must be measured.
  1. G11285768

    Check cylinder head face for distortion, across the center and from corner to corner.

    2. CAUTION:
    • Use care when installing the cylinder head. Damage to the cylinder block, cylinder head or cylinder head gasket may result.
    • The head gasket must be installed over the cylinder block dowels.
    NOTE: Install a new cylinder head gasket.
  2. G11285002
  3. Fig 1: Cylinder Head Bolt Tightening Sequence
    G11285005Courtesy of OF JAGUAR

    Torque Specification: 20 Nm

  4. Fig 2: Cylinder Head Bolt Tightening Sequence
    G11540624Courtesy of OF JAGUAR

    Torque Specification: 35 Nm

  5. Fig 3: Cylinder Head Bolt Tightening Sequence
    G11285005Courtesy of OF JAGUAR

    Tighten the bolts 1 to 10, a further 90 degrees.

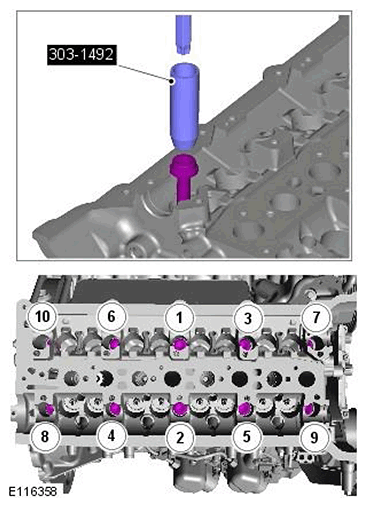

  6. Fig 4: Cylinder Head Bolt Tightening Sequence
    G11540626Courtesy of OF JAGUAR

    Tighten the bolts 1 to 10, a further 120 degrees.

  7. G11285009

    Torque Specification: 25 Nm

  8. Fig 5: Cylinder Head Bolt Tightening Sequence
    G11285010Courtesy of OF JAGUAR

    Torque Specification: 12 Nm

    9. CAUTION:
    • If a new cylinder head has been installed then new tappets must be installed.
    • If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
  9. G11284963

    Lubricate the valve tappets with clean engine oil.

    10. NOTE: Install a new gasket.
  10. G11284998

    Torque Specification: 12 Nm

    11. CAUTION: A new O-ring seal is to be installed.
    NOTE: Install a new engine oil filter.
  11. G11284997

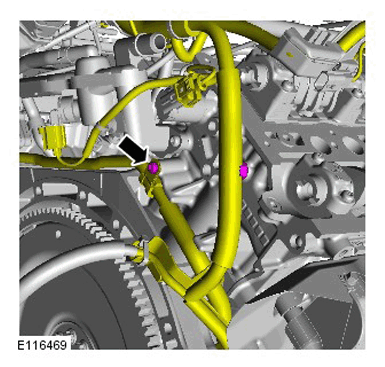

  12. G11285014

    Torque Specification: 12 Nm

  13. G11284955

    Torque Specification: 20 Nm

  14. G11284991

    Torque Specification: 20 Nm

    15. CAUTION: Install the new seals.
  15. G11284960

    Torque Specification: 10 Nm

    16. CAUTION: Install a new seal.
  16. G11284953

    Torque Specification: 12 Nm

  17. G11284999

    Torque Specification: 25 Nm

  18. G11284996

    Torque Specification: 25 Nm

  19. Refer to: Exhaust Manifold
  20. Refer to: right Camshaft
  21. Refer to: intake Manifold
  22. Refer to: Battery Disconnect and Connect
