Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect
  2. Refer to: Right Fuel Rail
  3. G11285317

    Torque Specification: 10 Nm

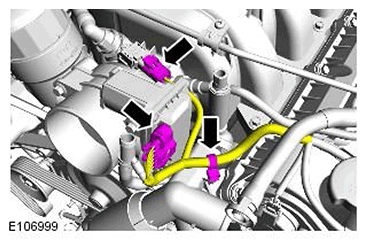

  4. G11540855
  5. G11285318
  6. G11285319
