Removal And Installation: Installation

CAUTION:
- Prior to installing the camshafts, position the crankshaft 45 degrees ATDC cylinder 1A to prevent valve/piston collision.

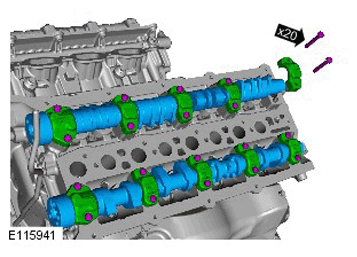

- Make sure that the camshafts and camshaft bearing caps are installed in their original locations.
- Evenly and progressively install and tighten the camshaft bearing caps.
NOTE: Lubricate the camshafts and the camshaft bearing caps with EP90 oil (or 75/90 viscosity oil will suffice) prior to installation.

Torque Specification: 3 Nm
Tighten the bolts in the indicated sequence.

Fig 1: Camshaft Bolts Tightening Sequence
Courtesy of OF JAGUAR

Torque Specification: 12 Nm

CAUTION: Only rotate the crankshaft clockwise.

Rotate the crankshaft untill the camshaft lobe on the valve being checked is 180 degrees from the maximum opening position.

NOTE:

If the valve clearance is incorrect, continue to the next step. If the valve clearance is correct, continue to step 8.
On vehicles without supercharger the inlet camshaft valve clearances cannot be checked.

Using feeler gauge check the gap between the tappet and the camshaft lobe and check against specifications table.

CAUTION:

Do not use a magnet to remove the tappet.
Use the following formula to calculate the required bucket thickness. Original thickness + measured clearance - desired clearance = required bucket thickness.

Remove the tappet and measure the thickness.

NOTE: If a new tappet is installed then go back to step 1 of the install procedure.

Install a new tappet if required.
Using feeler gauge check the gap between the tappet and the camshaft lobe and check against specifications table.
Refer to: timing Drive Components - Assembly Part Number: Ina Timing Drive or timing Drive Components - Assembly Part Number: Tsubaki Timing Drive
Refer to: Battery Disconnect and Connect
