Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect
  2. Raise and support the vehicle.
  3. Refer to: Engine Cover - 5.0L
  4. Refer to: Throttle Body

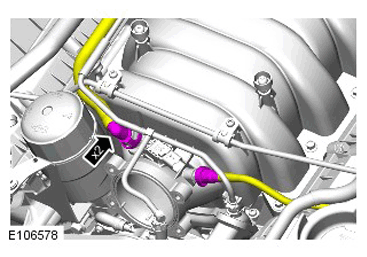

  5. G11285089

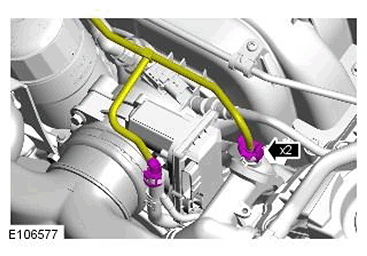

  6. G11540710

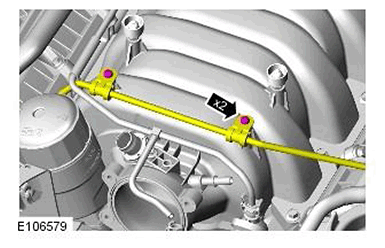

  7. G11540711

    Torque Specification: 8 Nm

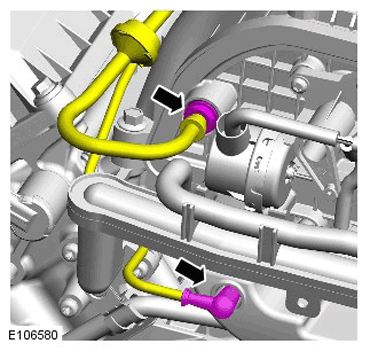

  8. G11285095

  9. Torque Specification: 8 Nm

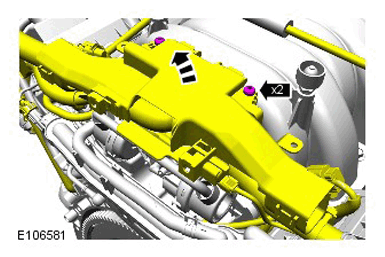

    G11285093
    10. CAUTION: Make sure that the mating faces are clean and free of foreign material.

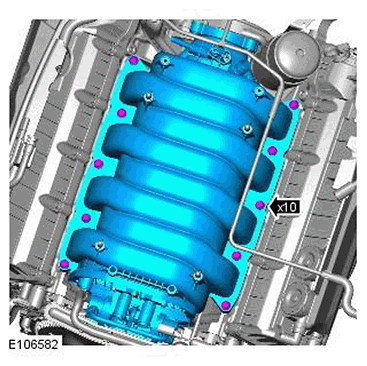

  10. G11540714

    Torque Specification: 25 Nm

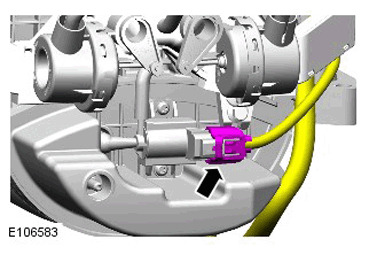

  11. G11285096

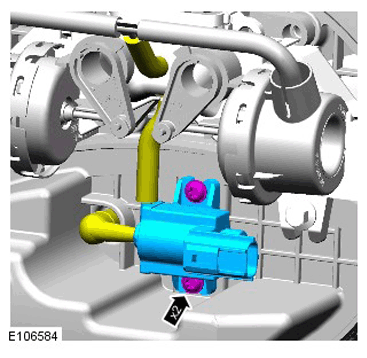

  12. G11285102

    Torque Specification: 10 Nm

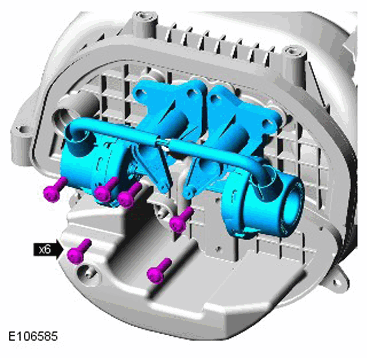

  13. G11285103

    Torque Specification: 10 Nm
