Valve Train: Notes

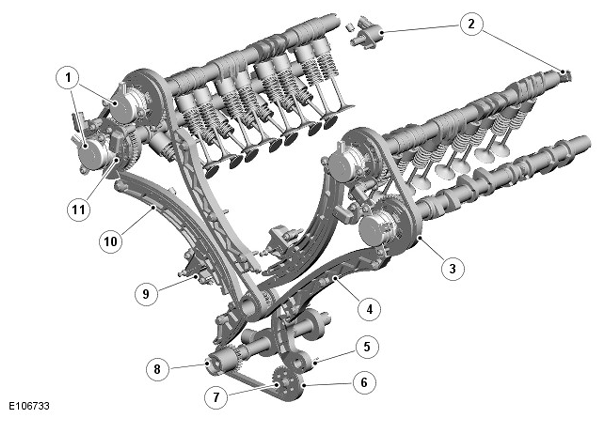

G11284794
ITEM DESCRIPTION
1 VCT solenoids
2 CPS solenoids
3 Inverted tooth timing chain
4 Nylon chain guide
5 Auxiliary chain tensioner
6 Auxiliary drive chain
7 Oil pump drive
8 Auxiliary drive camshaft
9 Timing chain tensioner
10 Tensioner lever
11 VCT unit
