Pistons And Connecting Rods: Notes

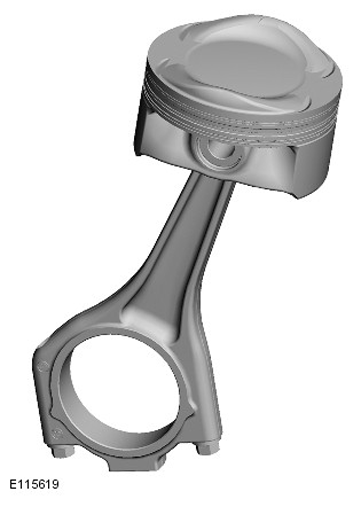

The diameter of each piston is graded and precisely matched to each cylinder bore to help reduce noise. In the vertical plane, the pistons have a slight barrel form, which helps to ensure a reliable oil film is maintained between the piston and the cylinder bore. A solid film lubricant coating is applied to both reaction faces of the piston to reduce wear and improve fuel economy.

A three-ring piston-sealing system is used. The steel top ring is treated with a PVD (physical vapor deposition) peripheral coating. PVD is a coating technique where material can be deposited with improved properties to ensure good cylinder bore compatibility and wear resistance. A Napier center ring helps cylinder pressure and oil management, while the three-piece oil control lower ring is produced from nitrided steel.

The connecting rods are forged from high strength steel. The cap is fracture-split from the rod to ensure precision re-assembly for bearing shell alignment. There are three grades of large end bearing available, each being color coded.
