Removal And Installation: Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Battery Disconnect and Connect
    2. WARNING: Make sure to support the vehicle with axle stands.

  2. Raise and support the vehicle.

  3. Refer to: right Exhaust Manifold

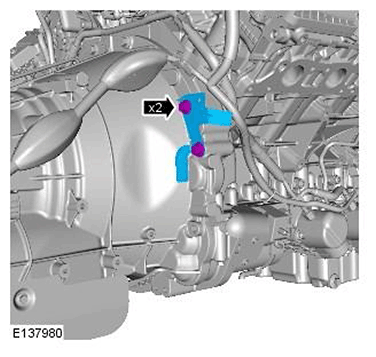

  4. G11540867

    Torque Specification: 48 Nm

  5. G11285331
  6. G11285332

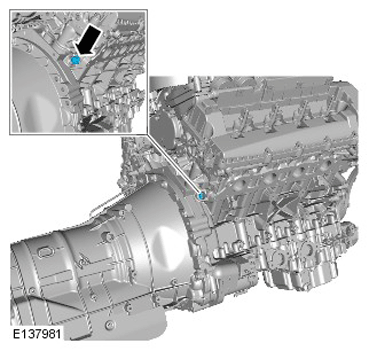

  7. G11285333

    Torque Specification:

    Stage 1: 40 Nm

    Stage 2: 180°
