Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
    WARNING: Make sure to support the vehicle with axle stands.
  1. Raise and support the vehicle.
  2. Refer to: Rear Muffler
  3. G11510962

    Torque Specification: 25 Nm

  4. G11512671
  5. G11512672

    Torque Specification: 50 Nm

    6. NOTE: This step requires the aid of another technician.

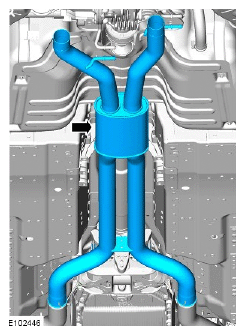

  6. G11512687
