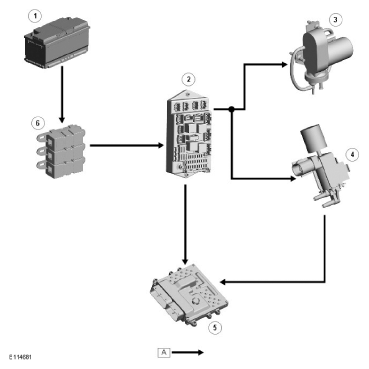

Control Diagram (Supercharger Vehicles Only)

NOTE: A  = Hardwired
G11512652
ITEM DESCRIPTION
1 Battery
2 BJB (battery junction box) (175 A megafuse)
3 Vacuum pump
4 Solenoid valve
5 ECM
6 AJB (auxiliary junction box)
