XKR-S2 Vehicles

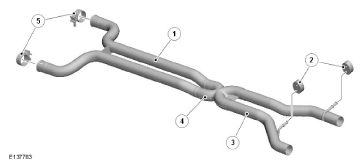

| ITEM | DESCRIPTION |
|---|---|
| 1 | Inlet pipe |
| 2 | Mounting rubbers |
| 3 | Outlet pipe |
| 4 | X-piece |
| 5 | Front to center section joint clamps |
The center section has two inlet and outlet pipes and a X-piece all welded together. A plate is welded between the inlet pipes at the front of the center section. Two suspension rubbers connect hangers on the outlet pipes to hangers on the underside of the body.
