Naturally Aspirated Vehicles

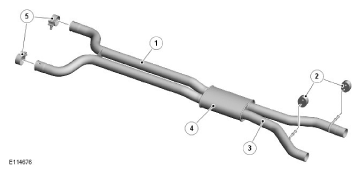

| ITEM | DESCRIPTION |
|---|---|
| 1 | Inlet pipe |
| 2 | Mounting rubbers |
| 3 | Outlet pipe |
| 4 | Front muffler |
| 5 | Front to center section joint clamps |
The center section has two inlet and outlet pipes and a muffler all welded together. A plate is welded between the inlet pipes at the front of the center section. Two suspension rubbers connect hangers on the outlet pipes to hangers on the underside of the body.
The muffler consists of an outer case and two end plates, which contain two perforated tubes and a baffle plate.
