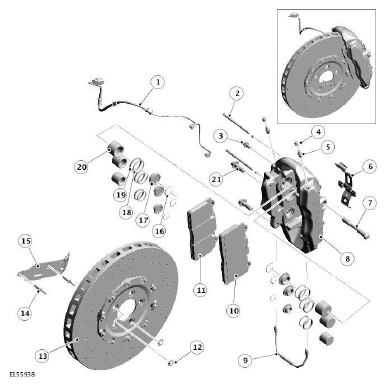

Component Location - Carbon Ceramic Discs
NOTE:
LH (left-hand) installation shown, RH (right-hand) installation similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Brake pad wear sensor |
| 2 | Brake pad retaining pins - 2 off |
| 3 | Caliper bridge pin bolt |
| 4 | Bleed screw dust cap |
| 5 | Bleed screw |
| 6 | Brake pad retainer |
| 7 | Caliper bridge pin |
| 8 | Caliper body |
| 9 | Brake disc |
| 10 | Outboard brake pad |
| 11 | Inboard brake pad |
| 12 | Brake disc retaining bolts (2 off) |
| 13 | Carbon ceramic disc |
| 14 | Rivet (2 off) |
| 15 | Heat shield |
| 16 | Cooling duct plate clip (6 off) |
| 17 | Cooling duct plate (6 off) |
| 18 | Piston dust cover (6 off) |
| 19 | Piston seal (6 off) |
| 20 | Piston (6 off) |
| 21 | Caliper bolt (2 off) |
