Removal And Installation: Removal

WARNING:
  • Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.
  • Brake discs must be renewed in axle sets only. Failure to follow this instruction may result in braking efficiency being impaired.
CAUTION: Take care not to contaminate the brake pad friction materials or the brake discs.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. G11297217

    Remove 2 opposing wheel nuts.

    Torque Specification: 125 Nm

  3. G11297218

    Install the wheel guide tools. (Located in the vehicle tool kit.)

    Torque Specification: 20 Nm

  4. CAUTION: The brake disc can be easily damaged. Take extra care when removing and installing the wheel.
    G11297219

    Remove the remaining wheel nuts and slide the wheel and tire over the guide tools.

    Torque Specification: 125 Nm

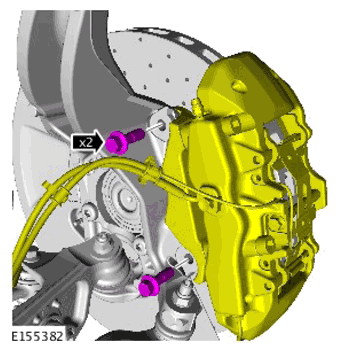

  5. CAUTION:
    • The brake disc can be easily damaged. Do not strike or lever on the brake disc.
    • Do not allow the caliper to hang from the brake hose.
    • Discard the bolts.
    G11297229

    Torque Specification: 115 Nm

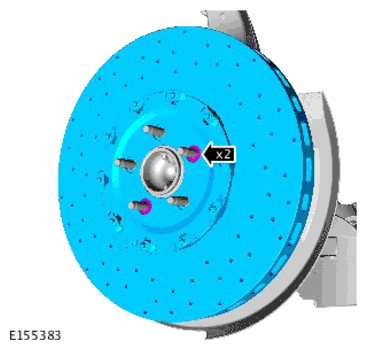

  6. CAUTION: The brake disc can be easily damaged. Do not drop the brake disc.
    G11297230
  7. Repeat this procedure on the opposite side.
