Removal And Installation: Removal
CAUTION:
Always protect paintwork and glass when removing exterior components.
-
Raise and support the vehicle.
- Remove the rear bumper cover.
For additional information, refer to: Rear Bumper Cover

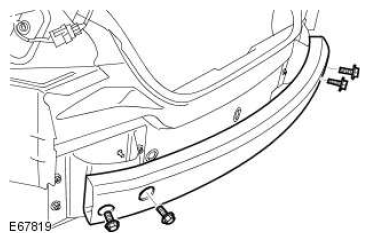

With assistance, remove the bumper.
- Remove the 4 bolts.

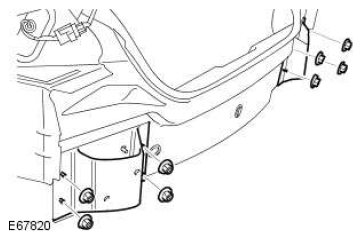

Remove the 2 crush tubes.
- Remove the 8 nuts.
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
