Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
    WARNING: Make sure to support the vehicle with axle stands.

  1. Raise and support the vehicle.

  2. For additional information, refer to: Front Bumper Cover

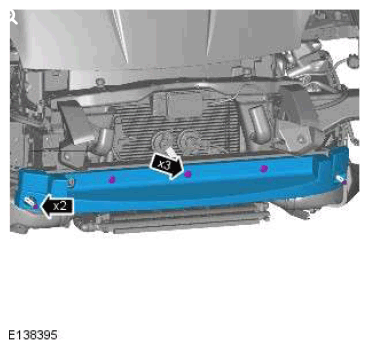

  3. G11524712
  4. NOTE:
    • RH illustration shown, LH is similar.
    • The step must be carried out on both sides.

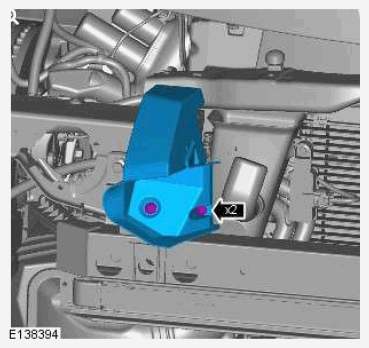

    G11524713

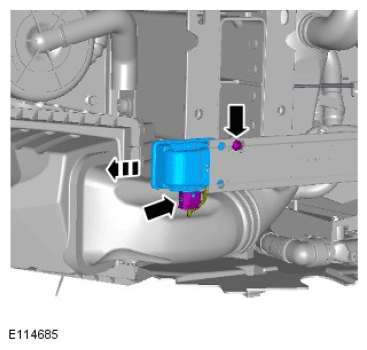

  5. G11305957

    TORQUE SPECIFICATION: 9 Nm

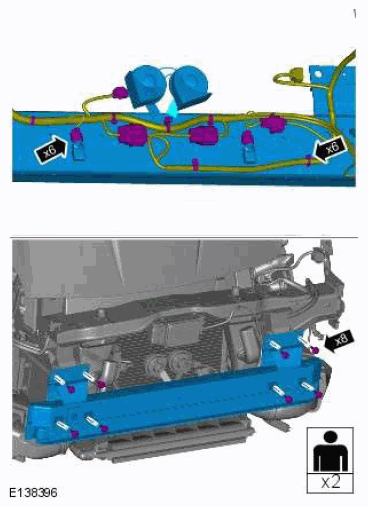

  6. G11524715

    TORQUE SPECIFICATION: 45 Nm

    7. NOTE: Do not disassemble further if the component is removed for access only.

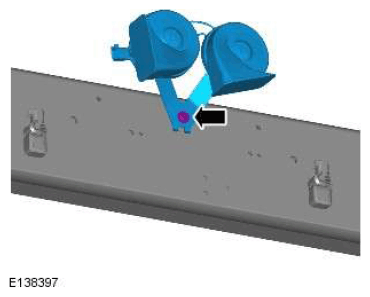

  7. G11524716
    8. NOTE:
    • LH illustration shown, RH is similar.
    • The step must be carried out on both sides.

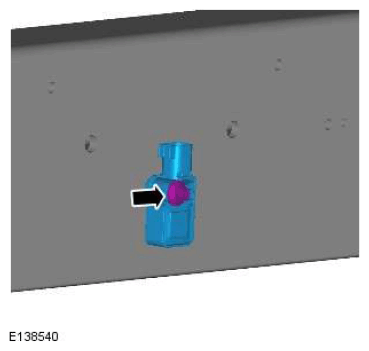

  8. G11524717

    TORQUE SPECIFICATION: 10 Nm
