NOTE: Removal steps in this procedure may contain installation details.
    WARNING: Make sure to support the vehicle with axle stands.

  1. Raise and support the vehicle.

  2. Refer to: Radiator Splash Shield
    3. NOTE:
    • Left-hand shown, right-hand similar.
    • The step must be carried out on both sides.
  3. G11523809
    4. NOTE:
    • Left-hand shown, right-hand similar.
    • The step must be carried out on both sides.
  4. G11523810
    5. NOTE:
    • Left-hand shown, right-hand similar.
    • The step must be carried out on both sides.
  5. G11523811

    Torque Specification: 4 Nm

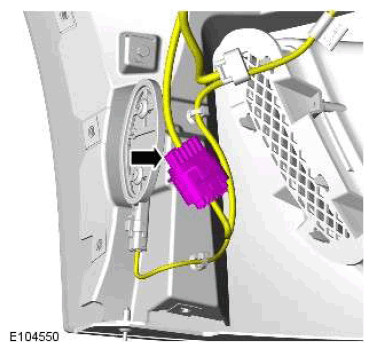

  6. G11524730
    7. NOTE:
    • LH illustration shown, RH is similar.
    • The step must be carried out on both sides.

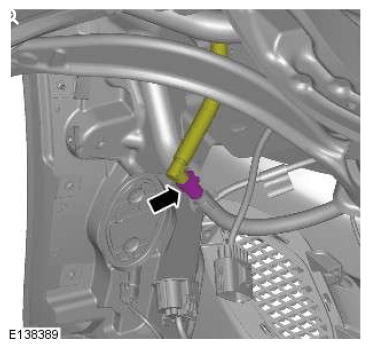

  7. G11524731

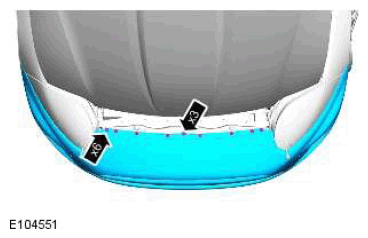

  8. G11524732

    Torque Specification: 4 Nm

    9. CAUTION: Always protect paintwork and glass when removing exterior components.
    NOTE: Do not disassemble further if the component is removed for access only.

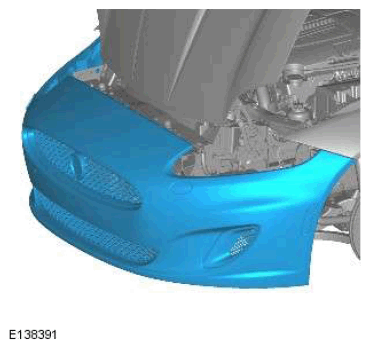

  9. G11524733
    10. NOTE:
    • Left-hand shown, right-hand similar.
    • The step must be carried out on both sides.

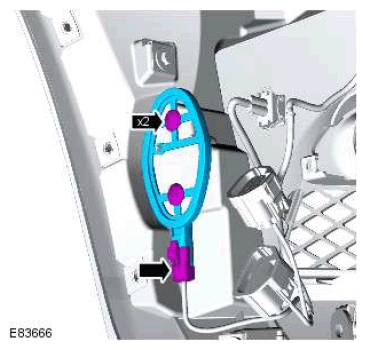

  10. G11524734
    11. NOTE: The step must be carried out on all sensors.

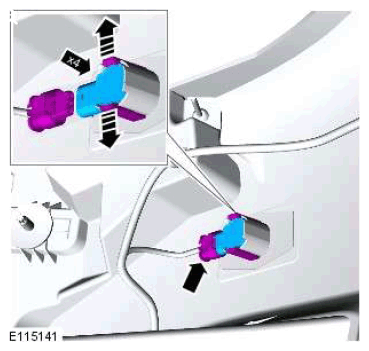

  11. G11524735

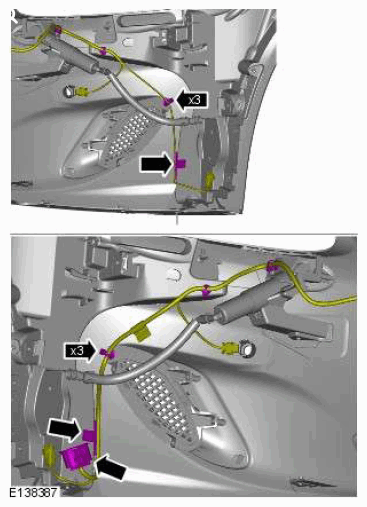

  12. G11524736

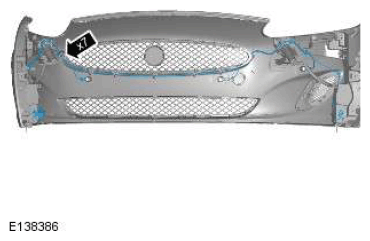

  13. G11524737
    14. CAUTION: Protect the surrounding paintwork to avoid damage.

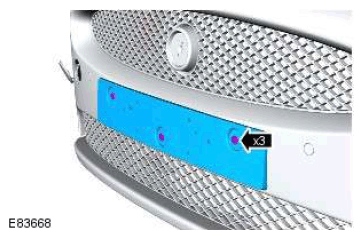

  14. G11524738

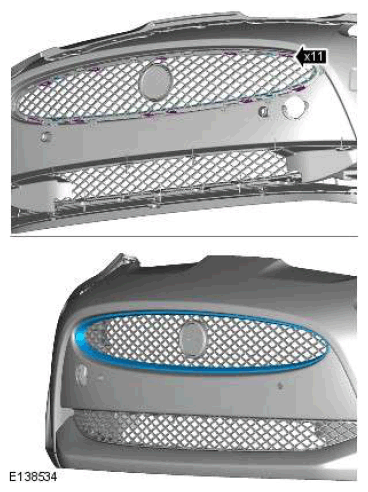

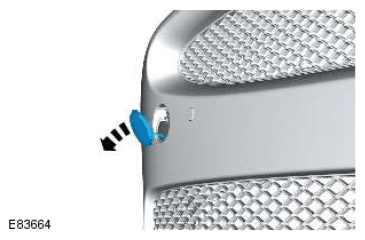

  15. G11524739
  16. G11524740

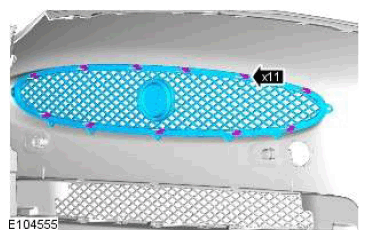

  17. G11524741

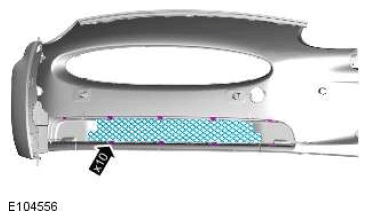

  18. G11524742
    19. CAUTION: Protect the surrounding paintwork to avoid damage.
    NOTE:
    • LH illustration shown, RH is similar.
    • The step must be carried out on both sides.

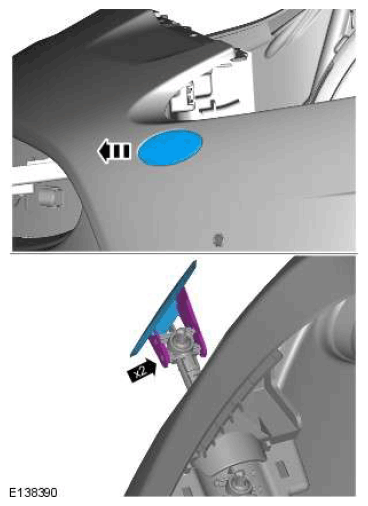

  19. G11524743
    20. NOTE:
    • LH illustration shown, RH is similar.
    • The step must be carried out on both sides.

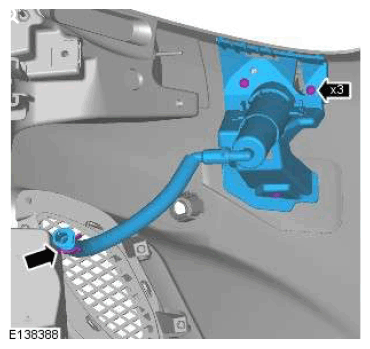

  20. G11524744
    21. NOTE:
    • Left-hand shown, right-hand similar.
    • The step must be carried out on both sides.

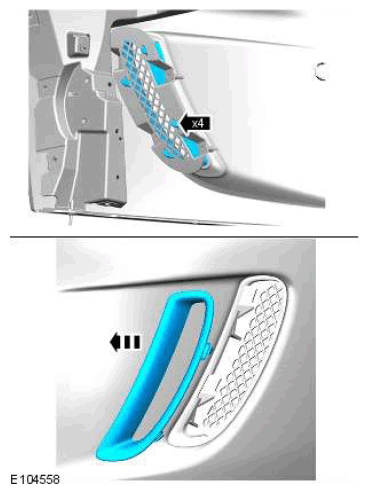

  21. G11524745
    22. NOTE:
    • Left-hand shown, right-hand similar.
    • The step must be carried out on both sides.

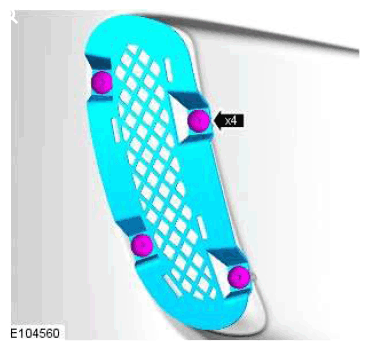

  22. G11524746
