Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
    CAUTION: Make sure to support the vehicle with axle stands.

  1. Raise and support the vehicle.

    2. NOTE: The procedure must be carried out on both sides.

  2. Refer to: Headlamp Assembly

  3. Refer to: Radiator Splash Shield
    4. NOTE:
    • Left-hand shown, right-hand similar.
    • The step must be carried out on both sides.

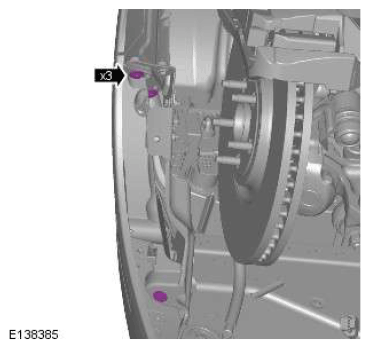

  4. G11524748

    Torque Specification: 4 Nm

    5. NOTE:
    • Left-hand shown, right-hand similar.
    • The step must be carried out on both sides.

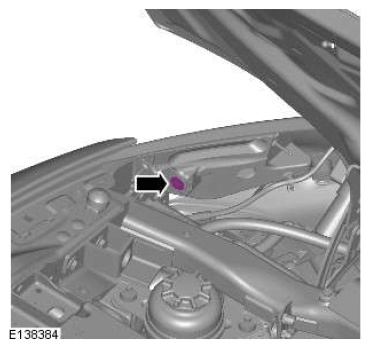

  5. G11524749

    Torque Specification: 4 Nm

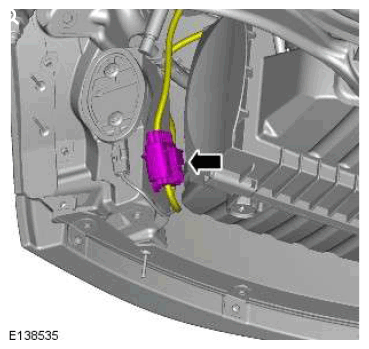

  6. G11524750
    7. NOTE:
    • LH illustration shown, RH is similar.
    • The step must be carried out on both sides.

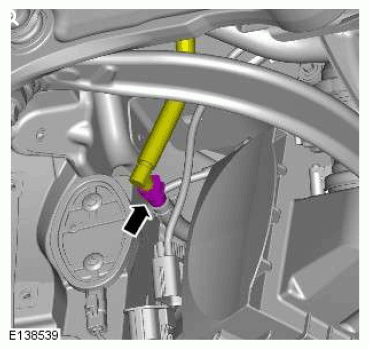

  7. G11524751

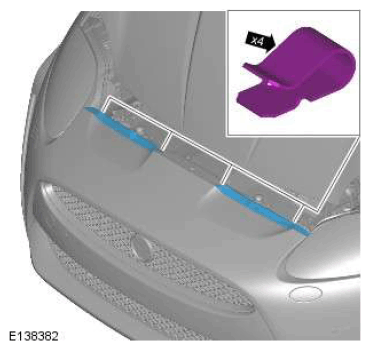

  8. G11524752
  9. G11524732

    Torque Specification: 4 Nm

    10. CAUTION: Always protect paintwork and glass when removing exterior components.
    NOTE: Do not disassemble further if the component is removed for access only.

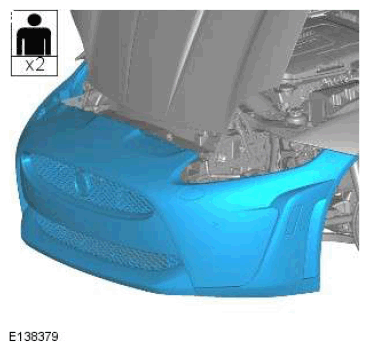

  10. G11524754
    11. NOTE:
    • Left-hand shown, right-hand similar.
    • The step must be carried out on both sides.
  11. G11524734
    12. NOTE: The step must be carried out on all sensors.
  12. G11524735

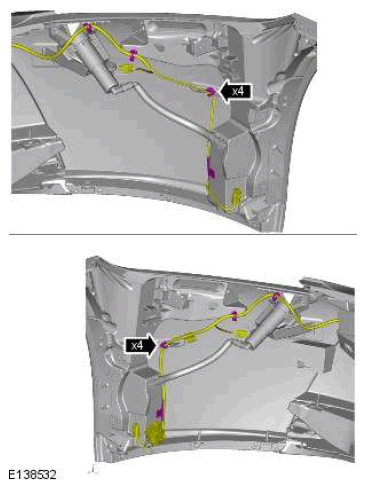

  13. G11524757

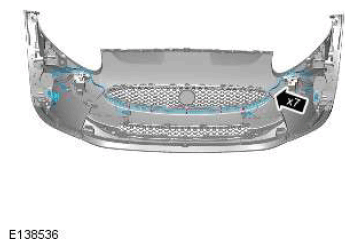

  14. G11524758
    15. CAUTION: Protect the surrounding paintwork to avoid damage.
  15. G11524738
  16. G11524739
  17. G11524740
  18. G11524741
    19. CAUTION: Protect the surrounding paintwork to avoid damage.
    NOTE:
    • LH illustration shown, RH is similar.
    • The step must be carried out on both sides.
  19. G11524743
    20. NOTE:
    • LH illustration shown, RH is similar.
    • The step must be carried out on both sides.

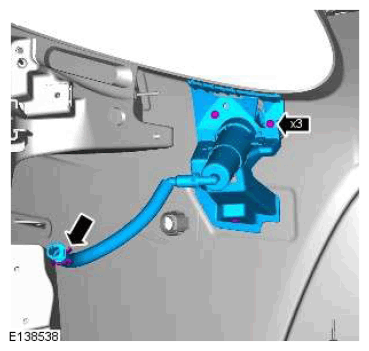

  20. G11524764
    21. NOTE:
    • LH illustration shown, RH is similar.
    • The procedure must be carried out on both sides.
    • If the front bumper mouldings are to be removed from the front bumper cover, discard the mouldings.

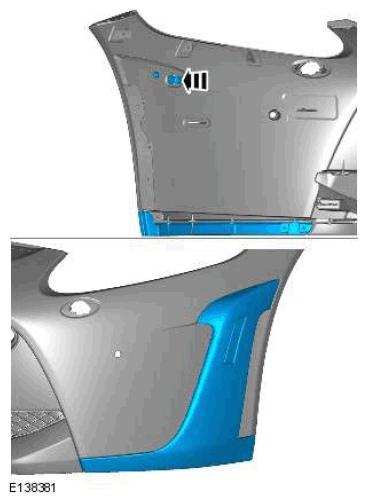

  21. G11524765

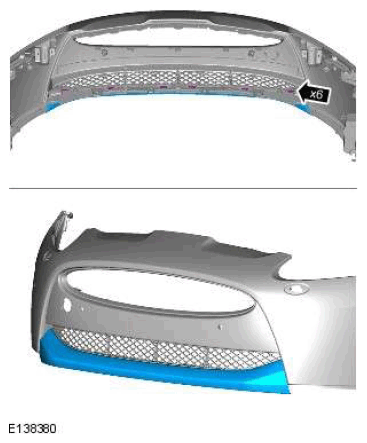

  22. G11524766
    23. NOTE:
    • LH illustration shown, RH is similar.
    • The step must be carried out on both sides.

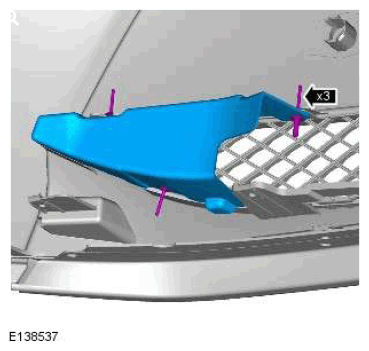

  23. G11524767

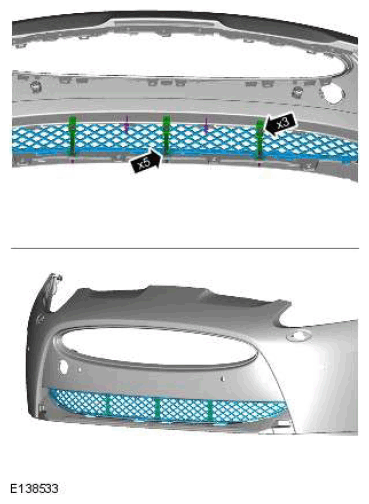

  24. G11524768
