Removal And Installation: Removal

WARNING: Make sure to support the vehicle with axle stands.

1. Raise and support the vehicle.

2. Refer to: Front Bumper Cover
NOTE:
• RH illustration shown, LH is similar.
• The step must be carried out on both sides.

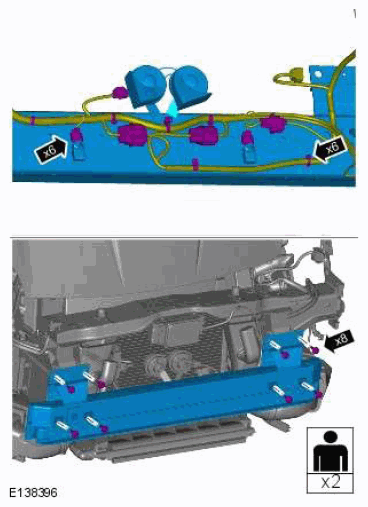

5. Torque Specification: 9 Nm

6. Torque Specification: 45 Nm

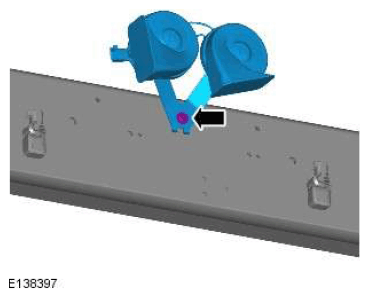

NOTE: Do not disassemble further if the component is removed for access only.

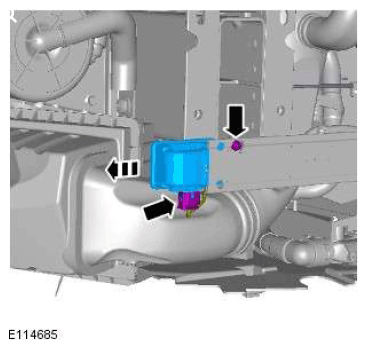

NOTE:
• LH illustration shown, RH is similar.
• The step must be carried out on both sides.

Torque Specification: 10 Nm
