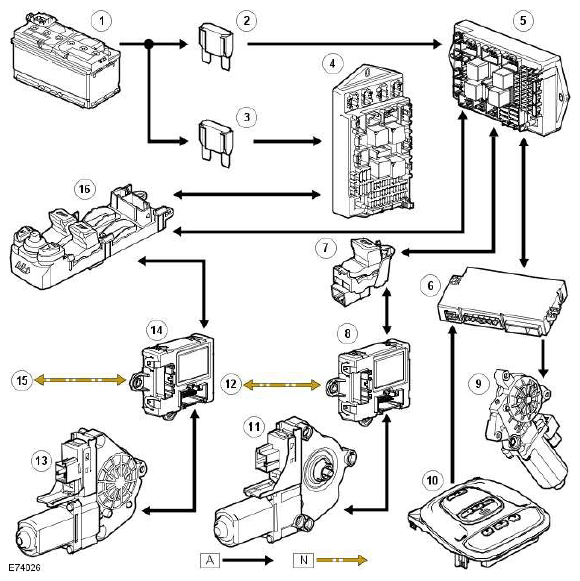

Control Diagram
NOTE:
A
= Hardwired; N
= CAN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Megafuse (175A) |
| 3 | Megafuse (175A) |
| 4 | Central Junction Box (CJB) |
| 5 | Auxiliary junction box |
| 6 | Convertible top control module (convertible only) |
| 7 | Passenger door switch |
| 8 | Passenger door module |
| 9 | Rear quarter lift motors (convertible only) |
| 10 | Convertible top switch (convertible only) |
| 11 | Passenger window motor |
| 12 | Controller Area Network (CAN) input and output signals to and from various other vehicle systems |
| 13 | Driver window motor |
| 14 | Driver door module |
| 15 | Controller Area Network (CAN) input and output signals to and from various other vehicle systems |
| 16 | Driver door switch pack |
