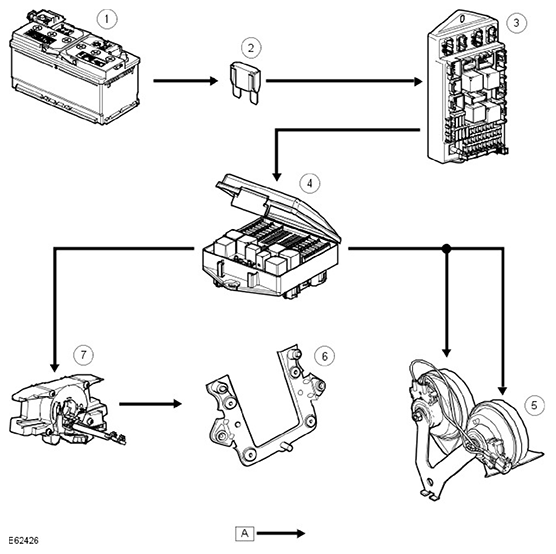

Control Diagram

NOTE: A = Hardwired

G11545313

ITEM	DESCRIPTION
1	Battery
2	175 A megafuse
3	CJB (central junction box)
4	Horn relay
5	Horns
6	Horn switch
7	Clockspring
