Special Tool(S): Adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: Battery Disconnect and Connect
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: Fuel Pump Camshaft Timing Check
  4. Refer to: Lower Timing Cover

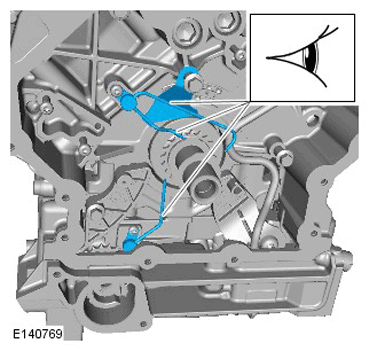

  5. CAUTION:
    • Make sure that the area around the component is clean and free of foreign material.
    • Inspect the 3 timing chain oil nozzles for signs of damage, install as necessary.
    G11284882

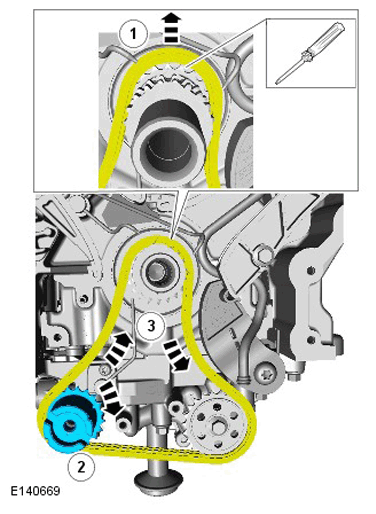

  6. NOTE: Using a suitable tie strap, position the tensioner to one side.
    G11284883

    Special Tool(s):  JLR-303-1613

    Torque Specification: 12 Nm

  7. Refer to: Lower Timing Cover
  8. G11284856

    Remove the Special Tool(s):  303-1447

  9. G11284855

    Torque Specification: 10 Nm

  10. NOTE: Install a new sealing washer.
    G11284854

    Torque Specification: 24 Nm

  11. Refer to: Battery Disconnect and Connect
  12. CAUTION: Make sure that the vehicle is left for 5 minutes from filling with oil and that the engine oil level is reading at least minimum (by following Steps  15- 19), before starting the engine.
    • Fill the engine with oil - for filling values on vehicles without supercharger:

      Refer to: Specifications

    • Fill the engine with oil - for filling values on vehicles with supercharger:

      Refer to: Specifications

    • Clean any residual engine oil from the oil filler cap area.
  13. CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oil.

    Follow the Steps  15- 19 before starting the engine.

    • Start the engine and allow to run for 10 minutes, stop the engine.
    • Check for leaks.
  15. CAUTION:
    • Make sure that the selector lever and the gearshift mechanism are in the park (P) position.
    • Make sure that the hood is open.
    • Turn the ignition on.
  16. G11507812
    • Scroll through the trip menu to access the engine oil level display.
  17. G11507813
    • Press the cruise control cancel button twice within 2 seconds.
  18. G11507814
    • The message center display will revert to the normal display in the trip computer.
    • Scroll through the trip menu to access the engine oil level display.
    • Check that the oil level display shows an oil level reading.
    • Only after having started and run the engine for 10 minutes (as indicated in Step  14), switch off the engine, then stabilizing for 10 minutes, take a reading from the oil level display and, if necessary top up with engine oil.
  19. NOTE: If instructed to follow Steps  15- 19 in a previous step, return to Step  14 and continue the procedure.

    Turn the ignition off.

  20. Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
  21. NOTE: The following steps are to update the average oil level value.
    G11507813
    • Turn the ignition on.
    • Press and hold the cruise control cancel button for more than 2 seconds.
    • The message center display will revert to the normal display in the trip computer.
  23. Turn the ignition off.
  24. Turn the ignition on.
  25. G11507814
    • Scroll through the trip menu to access the engine oil level display.
    • Make sure that the average oil level value has now been updated.
  26. Refer to: Air Deflector
