Camshaft Torsional Energy (For a Single Valve Event)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

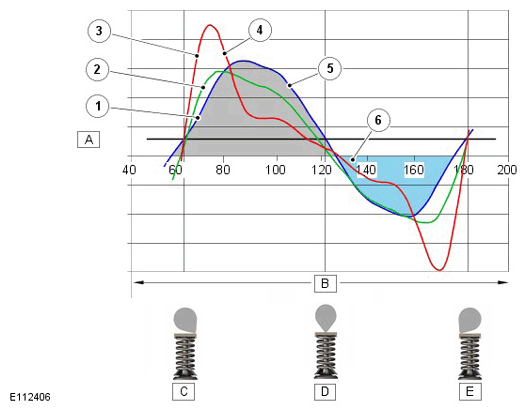

G11284799
ITEM DESCRIPTION
A Camshaft torque
B Camshaft rotation (degrees)
C Valve opening
D Peak lift
E Valve closing
1 1000 rev/min
2 4000 rev/min
3 7000 rev/min
4 Inertia effects from valve train rotating components
5 Force caused by valve spring
6 Bias torque from friction
